With 45+ years of experience in the concrete construction industry, we are a leading producer and supplier of building products on the east coast of the United States. From standard to custom made systems, we provide the safest and most efficient formwork and concrete reinforcing solutions for your project. Purchase or rent our products and solutions including Symons form panels, Stay Form, steel column clamps, form ties and more.
Accurately and efficiently build reinforced concrete column forms for pouring concrete columns.
Features: Compact design for economical shipping and storage. Easy to handle. Quick installation and dismantling. No tools required. Safer than wood. Can be reused many times.
Slide the casting along the bar up to the neighboring bar, place the wedge through the slot in the casting and the matching slot in the bar. Use a hammer to drive each wedge to secure the clamps tight. To dismantle, tap the wedge up to release the clamp bars.
| Clamp Size | Bar Size | Weight/Set | Form Size | Notes |
|---|---|---|---|---|
| 3 | 2 1/2" x 1/4" | 31 lbs. | 12" to 27" | |
| 4 | 2 1/2" x 5/16" | 45 lbs. | 15" to 39" | |
| 4 | 3" x 3/8" | 85 lbs. | 26" to 51" | |
| 7* | 3" x 3/8" | 100 lbs. | 36" to 68" | *Bar clamps only |

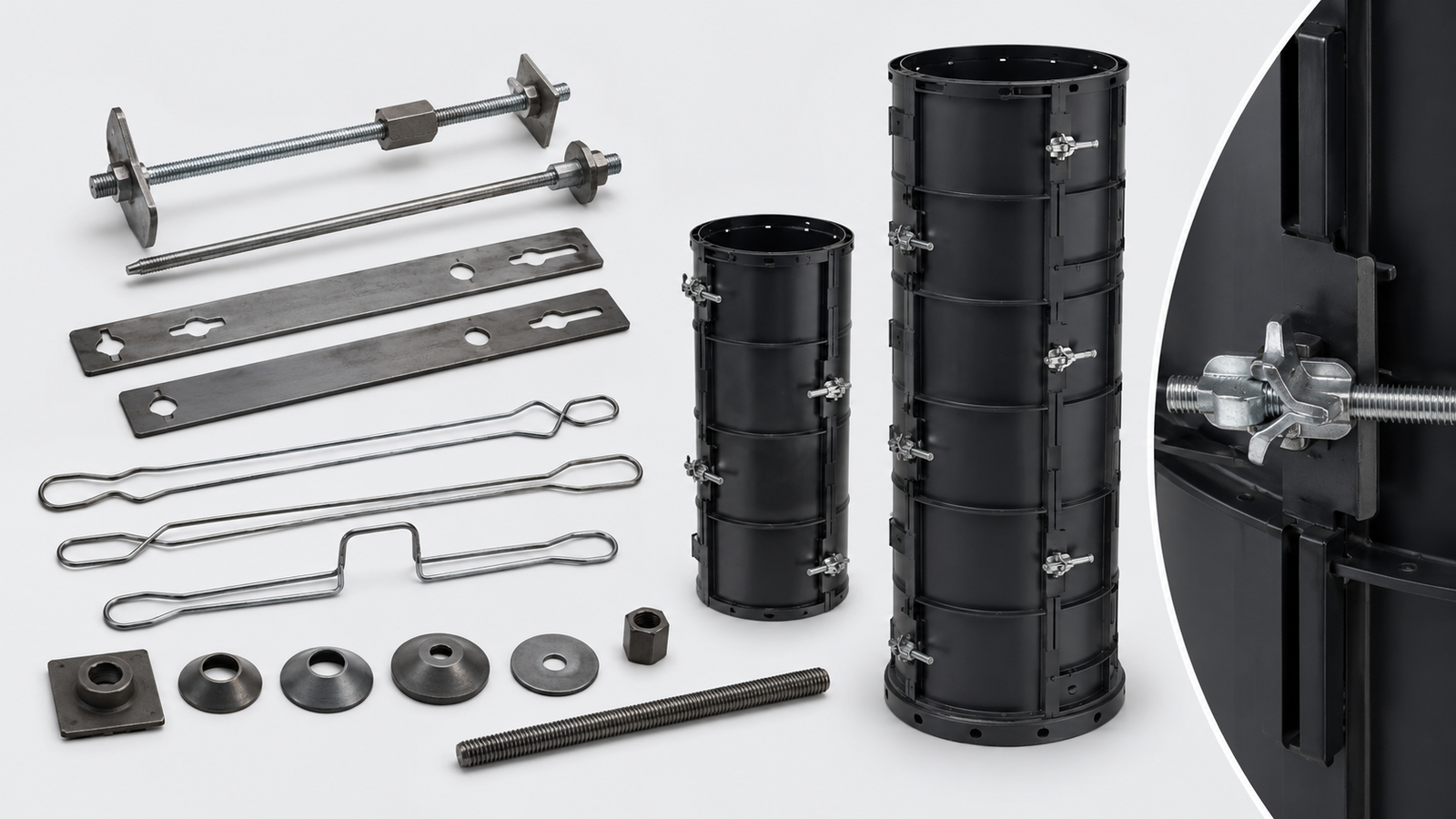

EDC flat ties and snap ties are industry standard and may be fabricated to any length to accommodate varying wall thicknesses. Form ties may be supplied with standard metal washers or plastic cone washers. Custom form ties are also available. Please specify use with: Symons, Hico, Mod U Form, Form Services Inc., Stay Form.

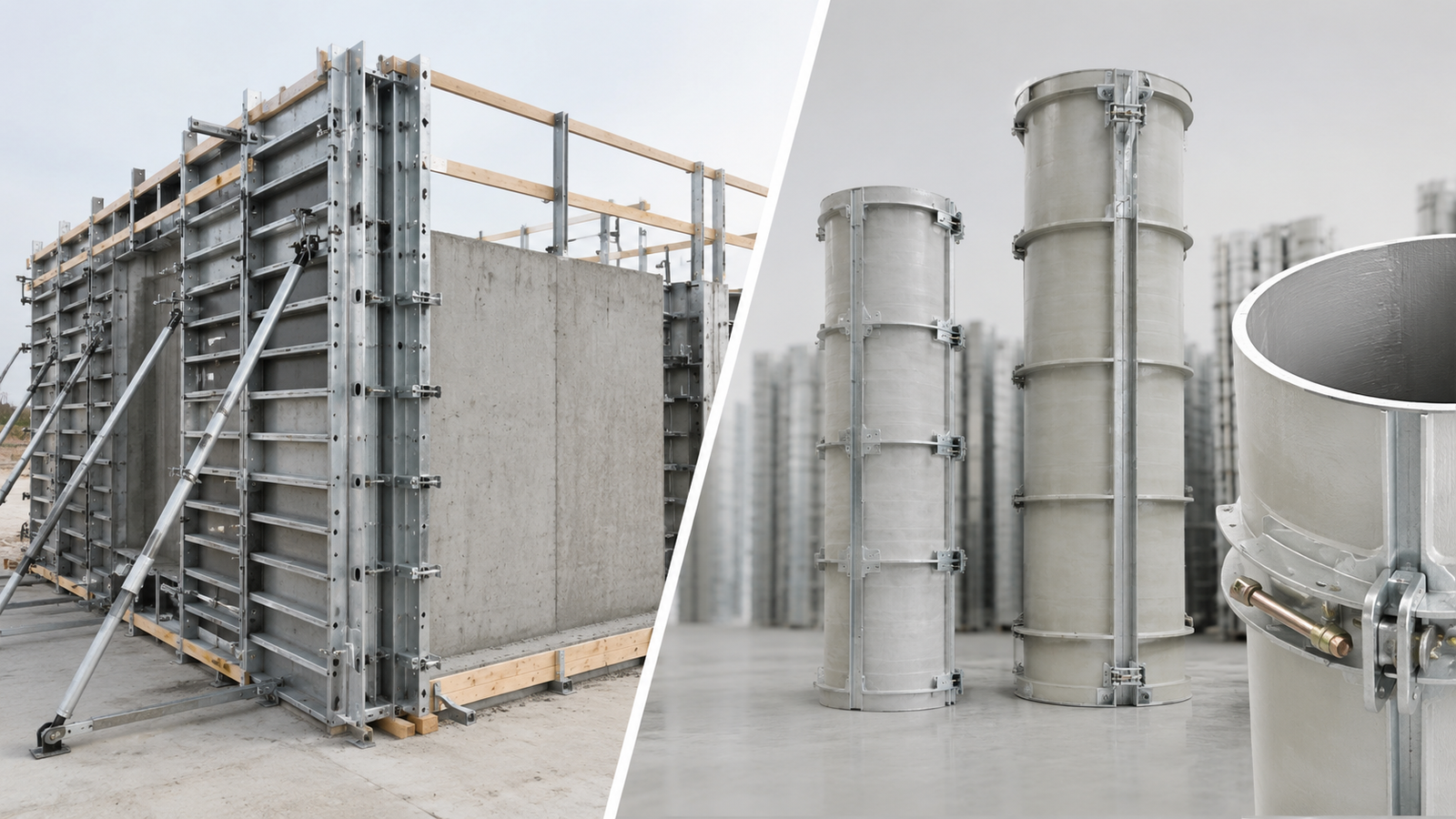

Form concrete walls to any shape or size with Symons’ Steel Ply accessories. 1000 PSF allowable pressure. Easy setup and strip. No measuring, sawing, drilling, or nailing required. The only tool required is a hammer. Comes in a variety of standard sizes. Can be used up to 100 times before re plying. Designed to form straight and radius walls. Available for rent or purchase.
